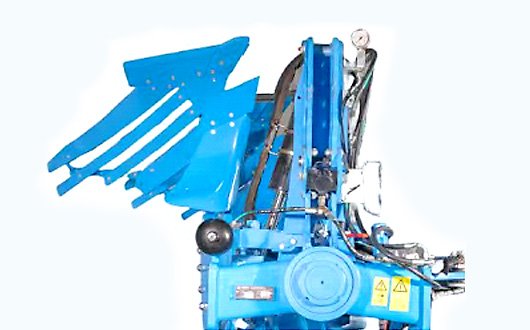

Model L10 Mounted Hydraulic Reversible Plough

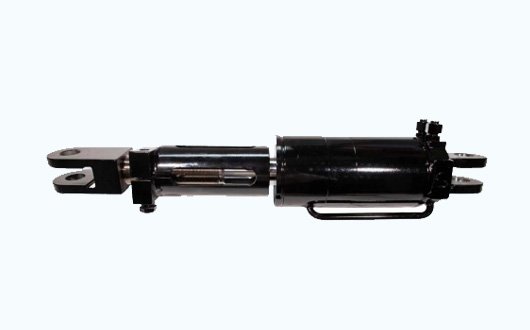

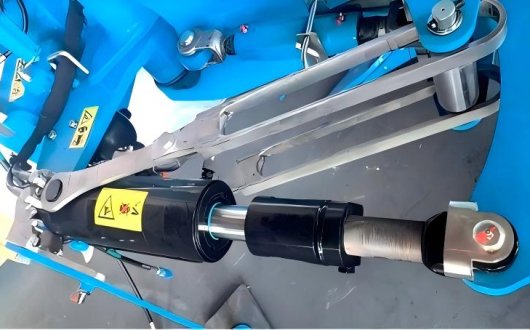

When encountering hard objects or sudden changes in terrain, the buffer cylinder absorbs the instantaneous impact force, reducing mechanical damage to the plow body, hydraulic system and tractor suspension system, while improving operating comfort. Automatically compensates for height changes when the ground is uneven, ensures uniform tillage quality and avoids over-turning of the soil to deeply or too shallowly due to the undulating terrain.

The buffer cylinder controls the reversing speed of the plow head to avoid violent collision of mechanical parts due to rapid movement. When encounters insurmountable resistance, the buffer cylinder prevents a sudden rise in hydraulic system pressure, protecting the tractor's oil pump, pipelines and other key components from damage. By adjusting the pressure, the force on the soil can be changed to adapt to different soils, optimize traction efficiency and reduce energy consumption.

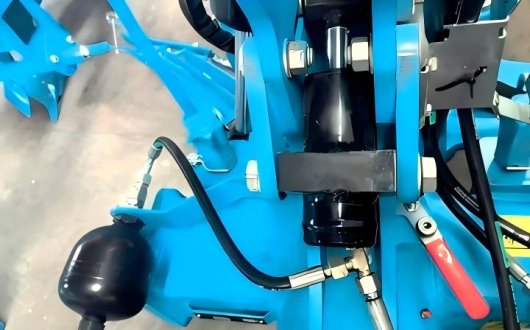

Amplitude modulation hydraulic cylinder accumulator can help buffer hydraulic impact when encounters a hard object or turns over quicly. It asborbs the shock and protects the hydraulic lines,seals and cylinders from damage or leakage. When the amplitude modulation cylinder needs to move quickly, the accumulator quickly releases the stored hydraulic oil, improving the system response speed and ensuring that the large plow adjustment is more sensitive and efficient.

The hydraulic system may leak slightly during long-term operation. The accumulator continuously releases the stored hydraulic oil to compensate for the leakage loss and maintain the pressure of the amplitude modulation cylinder stable, avoiding the amplitude modulation position deviation caused by pressure drop, which affects the tillage accuracy. The accumulator stores energy when the system is under low pressure and releases it when needed, reducing the high load operation of the hydraulic pump.
