Model L7 Mounted Hydraulic Reversible Plough

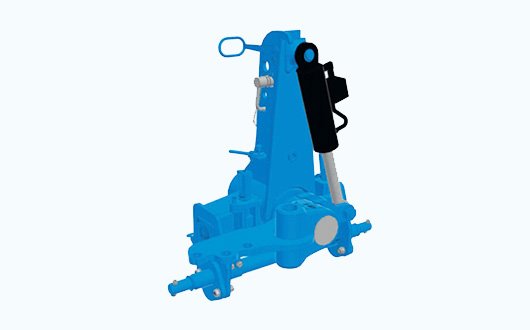

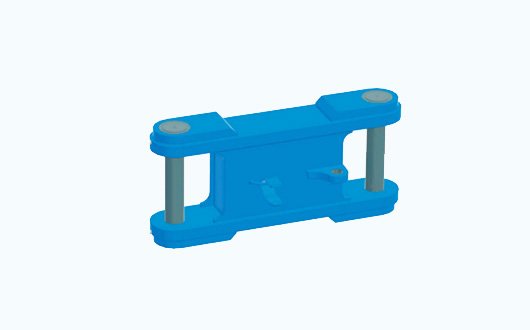

Plough head plough beam flip axis and  H-beams,etc,main parts all selected high strength special steel is made by leading heat treatment and processing technology,while the weight of the flip plough is greatly reduced,the performance is more reliable;

The whole hydraulic system of the plough is imported from Germany,longer service life and more stable performance;

The width of the operation can be adjusted by four grades(33/38/45/50cm、37/42/49/55cm or 40/45/53/60cm),meet the needs of customers for different working widths;

Ploughshare spacing 100、110 or 120cm optional,give the plough the ability to work in any straw condtion;

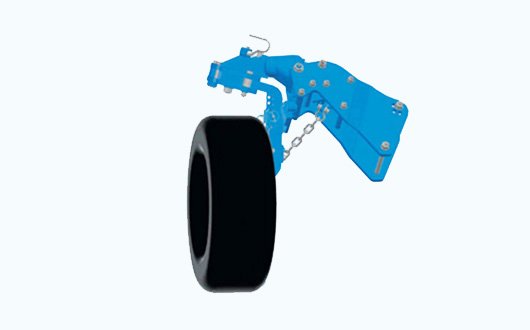

Standard depth-limiting wheel,optional depth-limiting and integrated transportation wheel;

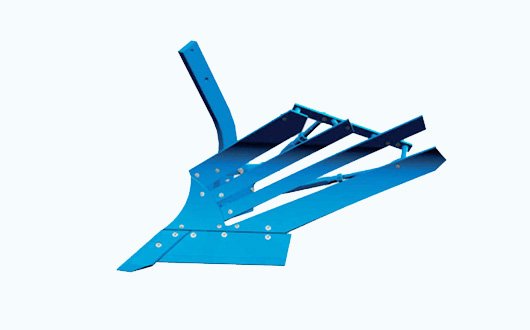

Ploughshare and small front plough are made of special wear-resistant materials,longer service life,the ploughshare is equipped with shear bolt anti-overload device,ensure the safe use of ploughshares in difficult conditions.
